Shenzhen Vasten lighting Co.,ltd Custom Neon sign & Led neon flex strip ，RGB ,Dream Color Strip Solution provider （Since 2011 year ）
9 Years
| Ask Lasest Price | |
| Brand Name : | Vasten |
| Model Number : | TA-SL-5050D-12V |
| Certification : | CE & RoHS |
| Price : | Negotiation US$/Meter |
| Payment Terms : | T/T, Paypal, Western Union |
| Supply Ability : | 3000 meter per month |
| Delivery Time : | 3-5 days |
Hot Sale LED Neon Flex RGB Dream Digital Color Pixel Rope, Dream color flexible 12v LED Neon IP65 outdoor decoration light
Silicon Extrusion Series LED Neon Flex Strip Light Silicone LED Neon Rope Light are the latest in LED linear lighting. Incorporating new and advanced LED technologies into the perfect flexible linear lighting solution, 12 Volt LED Strip Lights are the best choice for your lighting project. SMD LED Neon strip emulates traditional glass neon but at a fraction of the cost and energy consumption. Neon strip's small size and high degree of flexibility along with it's near indestructible design allows you to use it in the most demanding of locations..
Product Specifications:
| Light Source | Epistar SMD5050 led chip |
| LED qty/meter | 60leds/meter |
| IC type | IC VS17822 |
| IC QTY/M | 60IC/M(one ic control 1 led chip) |
| Input Voltage | 12V DC |
| Power | 14.4W/M |
| FPCB Thick | 4 OZ Pure Copper |
| Cutting length | 1 LED with 1.66cm |
| Led chip CRI | 5050 Tri-chip SMD LED |
| Material | white Milky silicone |
| IP rank | all the led neon rope are IP67 waterproof |
| Color | Digital Color Smart RGB |
| Warranty | 2 years warranty with CE Rohs |
| Package | package with 5meter per roll , one roll is 1.5kg |
| Certificate | CE Rohs EMC LVD approved |
| Lifespan | 50000 hours |
Our Digital LED RGB Neon flex Features:

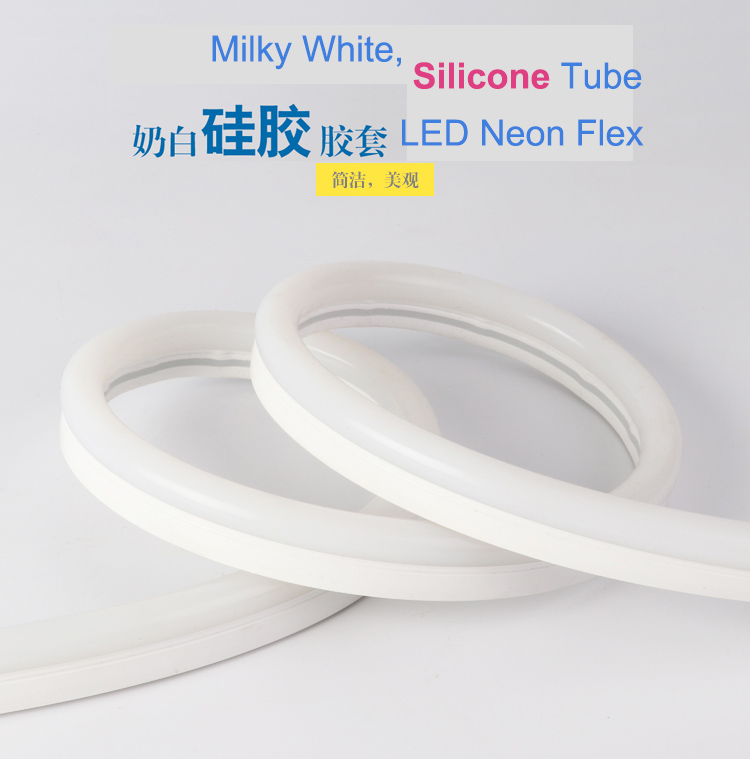

| 1.Milky white and Colored silicone jacket design |
| 2.Dome surface,continous and uniform illumination,no LED dot or dark spot. |
| 3.Extremely flexible |
| 4.100% waterproof ( IP67 level) |
| 5.100% breakage free |
| 6.Low voltage or line voltage options |
| 7.Durability,Impact Resistant,Weather Resistant,Minimal heat output(Safe to the touch) |
| 8.Longer lifespan 50,000 Hours |
| 9.Easy to install(Cuttable on location) |
| 10.Extremely low maintenance costs |
| 11.90% less energy consumption of glass neon for design LED neon flex available in all colors |
Product Type | LED Neon Flex | Service | OEM,ODM, cutomize is available |
Wattage | 14.4w/meter | Certificate | CE Rohs |
IP Rating | IP67 waterproof | Input voltage | DC 12V/24V |
package | 5meter per roll,one roll/box | Sample time | 1 day |
Installation
-Note that the output DC voltage of the switching power supply should be consistent with the rated voltage of the LED neon flex. Do not light the LED neon flex directly with the AC 220V.
-Ensure that the LED neon flex is firmly and reliably installed. It is best to use a special mounting channel to fix it.
-please cut at the scissors mark, such as outdoor installation, must handle the middle wiring waterproof measures.
-Do not bend the LED neon flex excessively. The minimum angle must not be less than 10 degrees.
NOTE:
We strongly recommend the use of a surge protector with our rope
lights.
All connections must be sealed with a waterproof sealant or
silicone and weatherproof heat tape kit when installing rope lights
outdoors.
To avoid damaging your lighting and the possible fire risk,
completely unspool lights before connecting to power.
Prior to cutting or modifying your neon LED rope lights, we
recommend testing the light output and color for your project.
Failure to test before altering a product may result in the
inability to return or exchange your purchase.

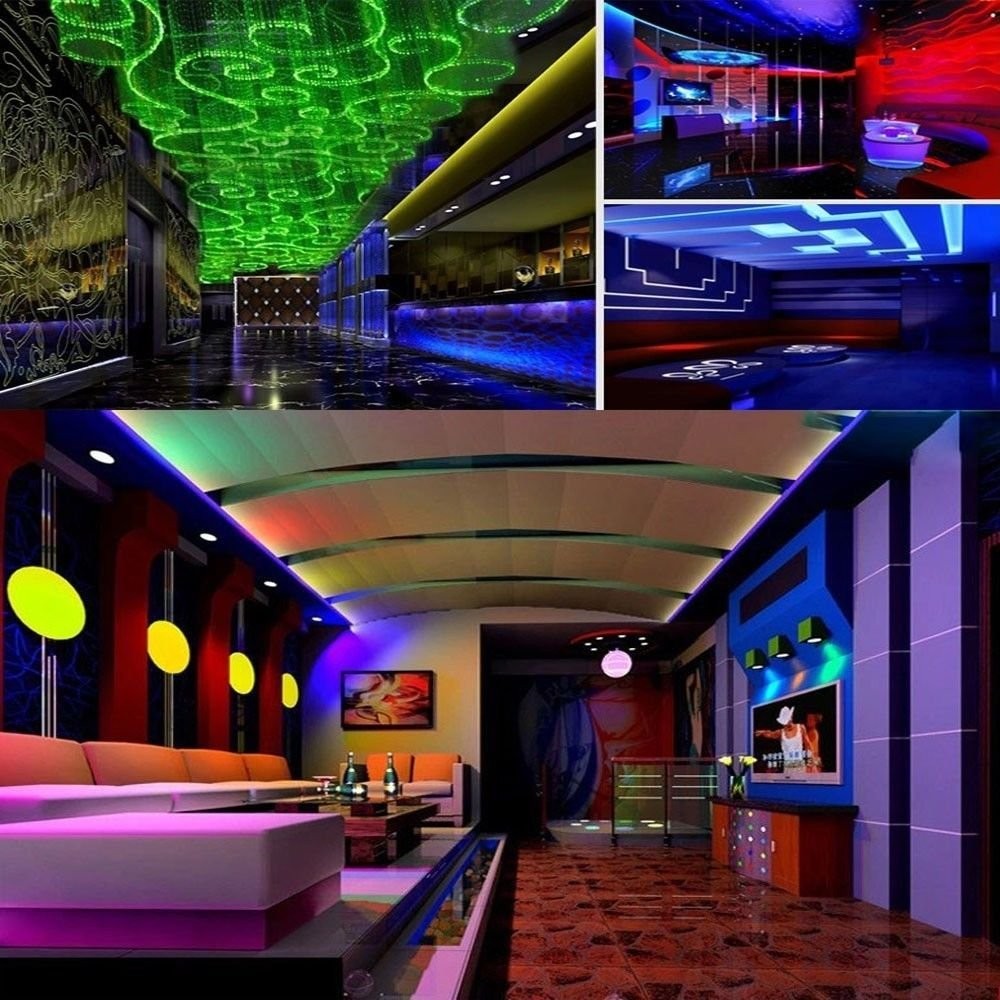

(1) For Sign
(2) ♦ Building decoration
♦ Car decoration
|
|
